Holding Pattern Computer
wind correction angles & perfectly timed legs
Our exclusive, patented analytic solution enables Pilots for the first time to roll out precisely on to the inbound leg and fly it for exactly the prescribed time or distance, regardless of wind direction and speed.
Our Aviation Holding Pattern Computer makes it easy for the student pilot and seasoned pilots alike solve the most common planning and navigating problems related to flying a holding pattern.
Our patented solution calculates wind correction angles, headings, and required timings, given the assigned fix, your speed, and virtually any wind direction and velocity up to 99.99% of TAS, outperforming all existing aircraft avionics systems on the market today.
It shows which entry procedure is appropriate, provides turn-by-turn directions, and helps the pilot remain mentally oriented to the aircraft's relative position to the pattern, to magnetic north, and any effects of wind.
Holding Pattern Computer employs a sophisticated patented analytic solution developed by 51-year Aerospace Industry veteran and FAA Safety Team Representative Les Glatt, Ph.D., ATP/CFI-AI, AGI/IGI.
This is the only holding pattern computer that automatically calculates ground track, wind correction angle, headings, and required timings, given the assigned fix, your true airspeed, and virtually any wind direction and velocity up to 99.99% of TAS.
Additionally, since the outbound time is measured from the point the aircraft turns to the outbound heading, it is no longer necessary to locate the abeam point. How's that for reducing Pilot workload!
If you want that perfectly timed inbound leg while rolling out precisely on to the inbound course, then this app is for you!
The Hold
The hold screen allows you to set the inbound radial, course or bearing of the fix and to set if the turns in the holding pattern are standard right-hand turns or non-standard left-hand turns.
Entering information is easy. Tap on the white box displaying the degrees value to bring up an on-screen numeric keyboard, or you can rotate the dial in the middle of the screen using your finger or fingers.
Set Inbound Leg
Set Turns
Tap field to change using keyboard
Rotate dial to change without keyboard
Tap buttons to change turns & fix type
Supports single finger operation
Leg Length
Many holding patterns define the length of an inbound leg in terms of time, such as 1 or 1.5 minutes depending on altitude, but some holds define the leg in terms of distance, such as six nautical miles.
Our holding pattern computer supports inbound leg lengths expressed in both time and distance in any of the following units:
Seconds
Minutes
Nautical Miles
Nautical Miles (UK)
Statute Miles
Kilometers
Aircraft Heading
This screen alows you to set the heading of your aircraft approaching the fix. The computer will use this value to determine the recommended Entry Procedure for the hold and to guide your turns further.
You can change the value displayed in the heading field by tapping it, to display on-screen keyboard. You can also change the heading value by rotating the heading dial using your fingers.
Set Aircraft Heading
Tap field to change using keyboard
Rotate dial to change without keyboard
Aircraft True Airspeed
Use this screen to enter the ture airspeed of the aircraft.
Along with wind data, the computer uses your true airspeed to determine your ground speed, wind correction angles and the perfect length and heading of the outbound leg.
You can enter speed expressed in any of the following units:
Knots
Knots (UK)
Miles per hour
Kilometers per hour
Meters Per Second
Wind Direction & Speed
With our wind correction calculations you can fly an outbound leg that will enable you to intercept the inbound leg with a neat standard-rate turn - every time!
Use this screen to enter the direction and speed of the wind. You can rotate the dial to change the wind direction, or tap the value to display an on-screen keyboard.
Wind speeds can be expressed in the following units:
Knots
Knots (UK)
Statute miles per hour
Kilometers per hour
Answer (Entry PatterN)

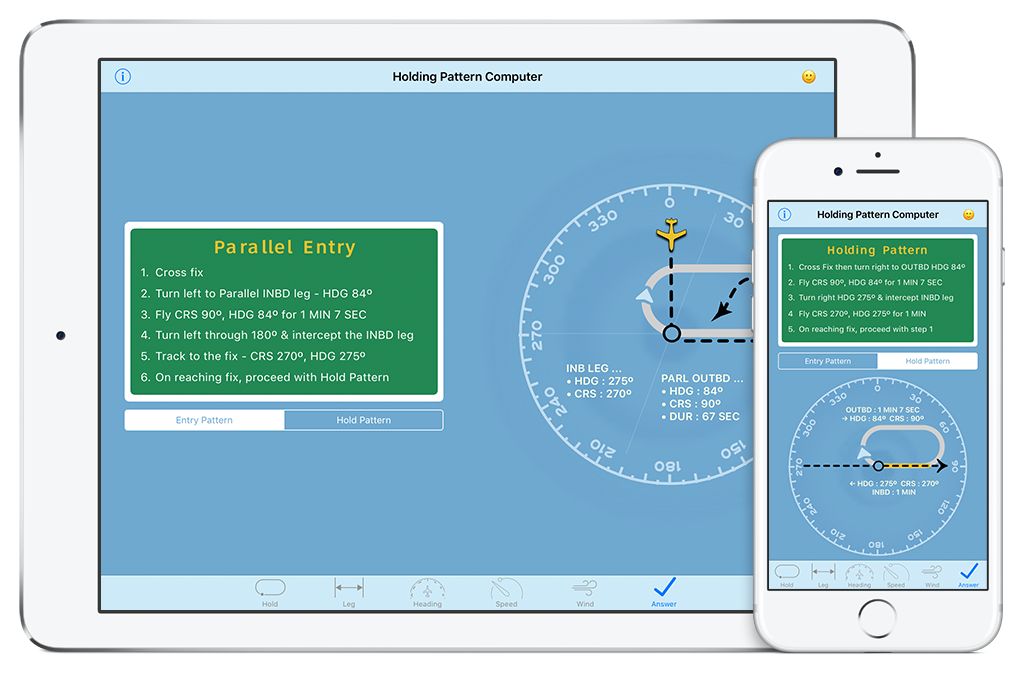

The "Entry Pattern" tab on the answer screen graphically depicts the recommended Entry Procedure and lists the steps necessary to fly it.
Direct, Parallel or Teardrop, the appropriate Entry Procedure is selected based on where the tail of the aircraft is located when it passes over the holding fix.
Additionally, the computer calculates which way to turn, left or right, which course and heading to maintain, and how long to fly a heading before initiating a standard-rate turn.
Entry Procedure
Turn Directions
Inbound & Outbound Course
Inbound & Outbound Heading
Outbound Leg Duration
Answer (Hold Pattern)
The "Hold Pattern" tab on the answer screen graphically depicts the recommended Holding Procedure and lists the steps necessary to fly it.
The holding pattern computer calculates which way to turn, left or right, which course and heading to maintain, and how long to fly a heading before initiating a standard-rate turn.
Turn Directions
Inbound & Outbound Course
Inbound & Outbound Heading
Outbound Leg Duration
